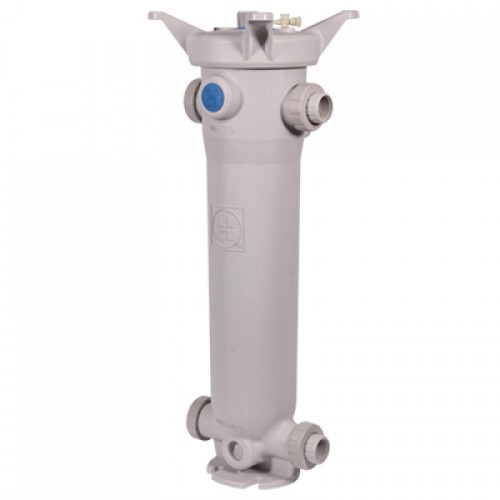

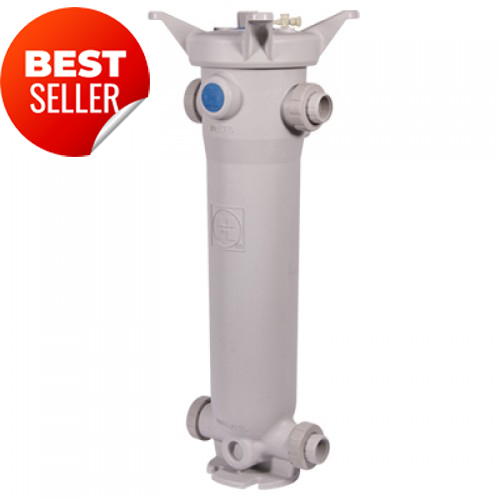

Hayward's industry-leading thermoplastic bag filters are specifically designed to handle the most challenging and corrosive applications out there. The revolutionary FLV series filter housing features a variety of end types in 1-1/4" to 4" sizes. The body is made with one-piece injection molding, which keeps these housings strong and stable. Hayward bag housings are available in Platinum GFPP, which is a durable polypropylene reinforced with glass, eliminating risk of bending and warping.

The rugged, thick wall construction of these filters ensures years of trouble free service. The built in true union piping and drain connections makes installation and operation quick and easy.

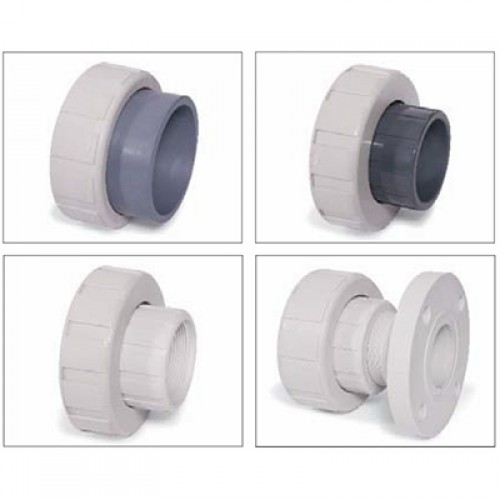

  • Easier Integration for Existing Systems due to True Union Connectivity

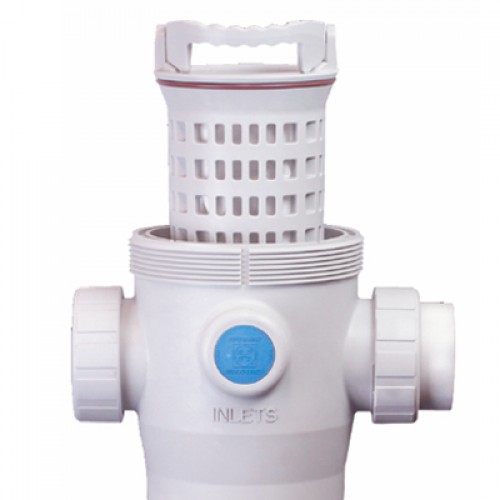

  • Simplified Bag Removal from Hinged Basket
  • Vertical Flow Flutes in Basket, No Bag Snag and More Flow Volume
  • Platinum GFPP Material
  • Hand-Removable Ergonomic Cover with Liquid Displacing Dome
  • 1-Piece Injection Molded Construction
  • Vent Valve on Cover
  • In-Line or Loop Configuration

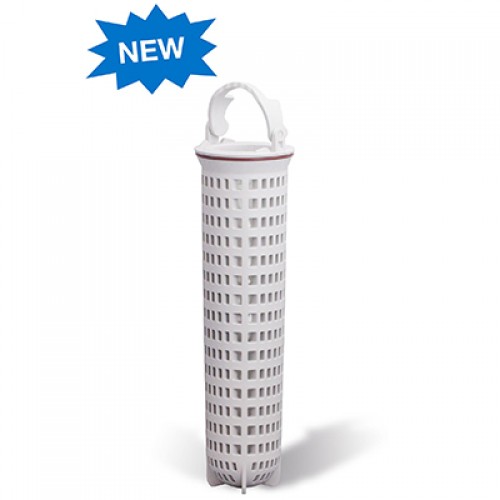

  • Hinged Basket for Easy Bag Removal

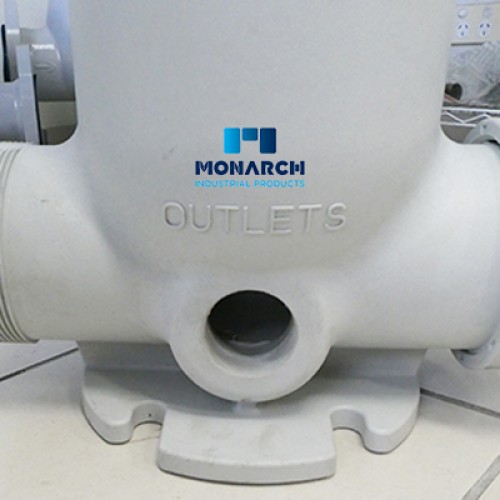

  • Drain Port at Bottom (optional 2" port available)
  • Integral Mounting Base
Code Body Connection Type Size Flow
FLV4P2S12T4VS GFPP GFPP NPT 1-1/4" 24 m³/hr
FLV4P2S15T4VS GFPP GFPP NPT 1-1/2" 24 m³/hr
FLV4P2S20T4VS GFPP GFPP NPT 2" 24 m³/hr
FLV4P2S25T4VS GFPP GFPP NPT 2-1/2" 34 m³/hr
FLV4P2S30T4VS GFPP GFPP
NPT 3" 34 m³/hr
FLV4P2S40T4VS GFPP GFPP NPT 4" 34 m³/hr
FLV4P2S12F4VS GFPP GFPP Flanged 1-1/4" 24 m³/hr
FLV4P2S15F4VS GFPP GFPP Flanged 1-1/2" 24 m³/hr
FLV4P2S20F4VS GFPP GFPP Flanged 2" 24 m³/hr
FLV4P2S30F4VS GFPP GFPP Flanged 3" 34 m³/hr
FLV4P2S40F4VS GFPP GFPP Flanged 4" 34 m³/hr
FLV4P2S12S2VS GFPP CPVC Socket 1-1/4" 24 m³/hr
FLV4P2S15S2VS GFPP CPVC Socket 1-1/2" 24 m³/hr
FLV4P2S20S2VS GFPP CPVC Socket 2" 24 m³/hr
FLV4P2S25S2VS GFPP CPVC Socket 2-1/2" 34 m³/hr
FLV4P2S30S2VS GFPP CPVC Socket 3" 34 m³/hr
FLV4P2S40S2VS GFPP CPVC Socket 4" 34 m³/hr
FLV4P2S12S1VS GFPP PVC Socket 1-1/4" 24 m³/hr
FLV4P2S15S1VS GFPP PVC Socket 1-1/2" 24 m³/hr
FLV4P2S20S1VS GFPP PVC Socket 2" 24 m³/hr
FLV4P2S25S1VS GFPP PVC Socket 2-1/2" 34 m³/hr
FLV4P2S30S1VS GFPP PVC Socket 3" 34 m³/hr
FLV4P2S40S1VS GFPP PVC Socket 4" 34 m³/hr
FLV4P2S12S3VS GFPP PP Socket Fusion 1-1/4" 24 m³/hr
FLV4P2S15S3VS GFPP PP Socket Fusion 1-1/2" 24 m³/hr
FLV4P2S20S3VS GFPP PP Socket Fusion 2" 24 m³/hr
FLV4P2S25S3VS GFPP PP Socket Fusion 2-1/2" 34 m³/hr
FLV4P2S30S3VS GFPP PP Socket Fusion 3" 34 m³/hr
FLV4P2S40S3VS GFPP PP Socket Fusion 4" 34 m³/hr
Flow rate stated is a guide only - Please provide application information to our sales team for flow calculations.

Hayward FLV Bag Filter GFPP 02 Size

  • Brand: Hayward Flow Control
  • Product Code: Hayward FLV Bag Filter GFPP 02 Size
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options


02 Filter Bags to fit this Housing
