Industrial Liquid Filtration

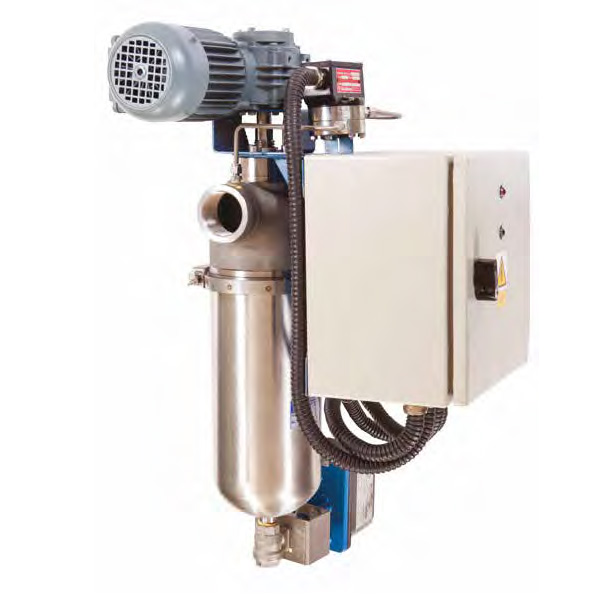

Oxford XCLPS Self-Cleaning Filter
A 316 stainless steel self-cleaning scraping screen filter for industrial liquid filtration applications up to 14 bar.
The Oxford XCLPS self-cleaning filter is designed to reduce manual screen cleaning, minimise operator contact with process fluids and improve filtration continuity in suitable industrial liquid applications.
Self-Cleaning Filtration for Industrial Liquids
The Oxford XCLPS self-cleaning filter is a blade-type scraping screen filter designed for liquid filtration applications where regular manual cleaning of strainers, baskets or filter elements can create downtime, labour cost and operator exposure to process fluids.
During operation, process liquid passes through a stainless steel wedge wire filter element. Retained solids are removed from the screen surface by the internal cleaning blade, allowing the filter to be cleaned without opening the housing during normal cleaning operation.
The XCLPS can be supplied for manual or automatic cleaning operation, making it suitable for process applications where improved output, consistent filtration quality and reduced maintenance intervention are important.
Suitable where you need to:
- Reduce manual filter cleaning
- Improve process continuity
- Reduce operator contact with process liquid
- Filter water through to higher viscosity fluids
- Automate or simplify the cleaning process
Features & Benefits
Designed to provide practical, enclosed and efficient liquid filtration for industrial applications.

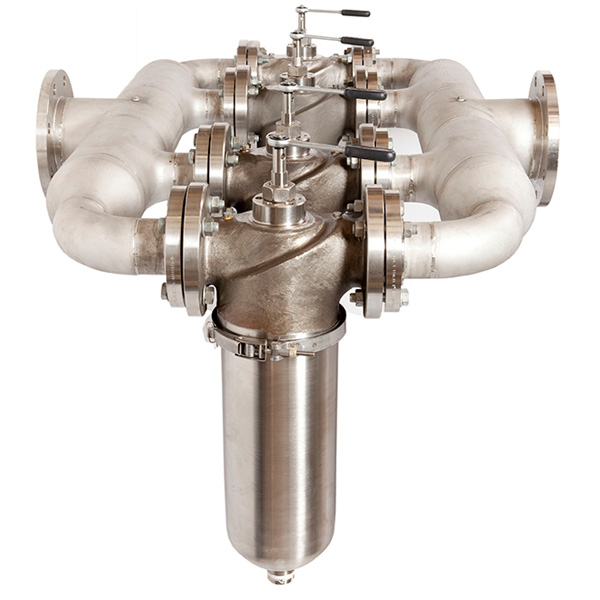

Self-Cleaning Scraping System
Internal blade cleaning removes retained solids from the screen surface without the need to manually remove the filter element during normal cleaning.
Manual or Automatic Operation
The XCLPS can be supplied with manual or automatic cleaning operation depending on the process requirements and level of operator involvement required.
Enclosed Filtration
Helps reduce operator exposure to process liquids compared with filtration systems that require frequent opening for cleaning or element removal.
316 Stainless Steel Construction
Manufactured from 316 stainless steel for suitable industrial liquid filtration applications requiring corrosion-resistant construction.
Wedge Wire Filter Element
Stainless steel wedge wire media provides a robust filtration surface, with element sizes available from 50 micron.
Application Support
Monarch Asia Pacific can assist with product selection, application review, installation considerations and practical engineering support.
How the XCLPS Self-Cleaning Filter Works
Process liquid enters the filter housing and passes through the stainless steel wedge wire element. Suspended solids are retained on the screen surface while filtered liquid continues through the outlet.
When cleaning is required, the internal scraping blade removes collected solids from the screen surface. Depending on the configuration, the cleaning process can be carried out manually or automatically.
This enclosed cleaning method can help reduce downtime, reduce manual handling and support more consistent filtration performance in suitable liquid process applications.
- Blade-type self-cleaning action
- Stainless steel wedge wire screen
- Manual or automatic cleaning options
- Reduced need to open the filter for routine cleaning
Technical Data
Oxford XCLPS self-cleaning filter specifications.
| Model | XCLPS Self-Cleaning Filter |
|---|---|
| Operation | Manual or automatic operation |
| Application | Liquid filtration |
| Filter Media | Stainless steel wedge wire |
| Material | 316 Stainless Steel |
| Element Sizes | From 50 micron |
| Closure | Quick release V clamp |
| Threaded Sizes | DN40, DN50, DN65 |
| Flanged Sizes | DN40, DN50, DN65, DN80, DN100 |
| Connections | BSP, NPT, DIN and ANSI options |
| Pressure Rating | 14 bar / 200 psi at 50°C |
| Options | Chemical-compatible seals and automation package |
Need help selecting?
To assist with selection, please provide details such as flow rate, fluid type, viscosity, operating pressure, temperature, solids loading, required micron rating and connection size.
Contact MonarchTypical Applications
Oxford XCLPS self-cleaning filters are used where suspended solids need to be removed from compatible industrial liquids while reducing manual cleaning and process interruption.

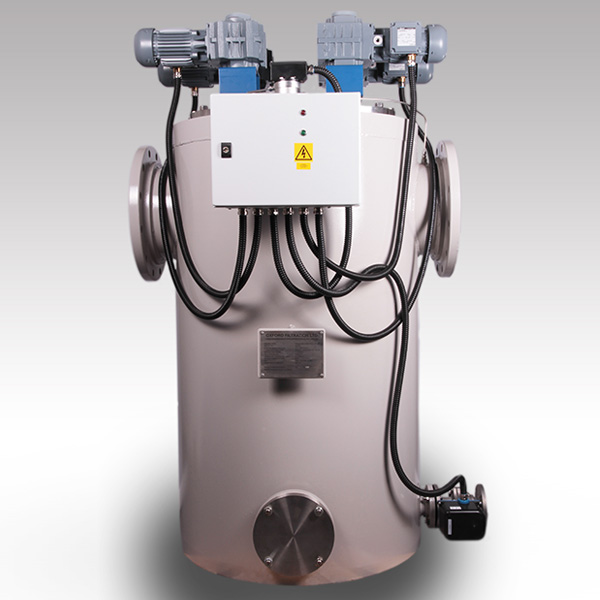

Also Available: XCLPS-HP High-Pressure Model
For applications requiring a higher pressure rating, the Oxford XCLPS-HP self-cleaning filter is available with a 50 bar / 725 psi rating at 50°C.
The XCLPS-HP model is typically selected for higher pressure or larger flow applications and is available in larger connection sizes than the standard XCLPS model.
View 50 Bar High-Pressure Model| Model | Pressure Rating |
|---|---|
| XCLPS | 14 bar / 200 psi at 50°C |
| XCLPS-HP | 50 bar / 725 psi at 50°C |
Product Supply + Practical Engineering Support
Backed by Monarch Workshop Capability
Monarch Asia Pacific combines industrial filtration product knowledge with practical workshop capability from our Brendale facility.
We can assist with filter selection, application review, fabricated supports, pipework considerations, filter skids, replacement components and practical installation support where required.
- Application and specification review
- Filter and strainer skid fabrication
- Fabricated supports, guards and brackets
- Pipework and installation considerations
- Replacement screens and fabricated components where suitable
- Workshop machining and fabrication support
Downloads
Product brochures and installation information.
