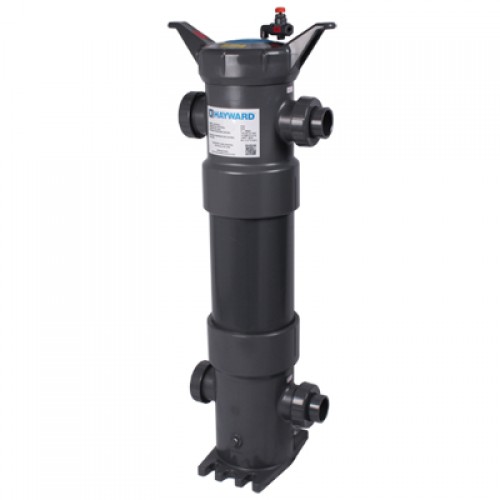

  • Hayward FLV Bag Filter PVC 02 Size

Hayward's industry-leading thermoplastic bag filters are specifically designed to handle the most challenging and corrosive applications out there. The FLV Series in PVC material featuring true-union design in 1-1/4" to 4" sizes, with socket, threaded or flanged ends. Ideal for sodium hypochlorite and bleach processing and handling. FPM seals standard, EPDM optional. Pressure rated for 150psi at 70F non-shock.

The rugged, thick wall construction of these filters ensures years of trouble free service. The built in true union piping and drain connections makes installation and operation quick and easy.

  • Easier Integration for Existing Systems due to True Union Connectivity
  • Vertical Flow Flutes in Basket, No Bag Snag and More Flow Volume
  • Hand-Removable Ergonomic Cover with Liquid Displacing Dome
  • Vent Valve on Cover
  • In-Line or Loop Configuration
  • Hinged Basket for Easy Bag Removal
  • Drain Port at Bottom
  • Integral Mounting Base
Code Body Connection Type Size Flow
FLV12S12STV PVC PVC NPT/Socket 1-1/4" 23 m³/hr
FLV12S15STV PVC PVC NPT/Socket 1-1/2" 23 m³/hr
FLV12S20STV PVC PVC NPT/Socket 2" 23 m³/hr
FLV12S25SV PVC PVC Socket 2-1/2" 23 m³/hr
FLV12S30SV PVC PVC Socket 3" 23 m³/hr
FLV12S40SV PVC PVC Socket 4" 23 m³/hr
FLV12S25TV PVC PVC NPT Thread 2-1/2" 23 m³/hr
FLV12S30TV PVC PVC NPT Thread 3" 23 m³/hr
FLV12S40TV PVC PVC NPT Thread 4" 23 m³/hr
FLV12S12FV PVC PVC Flange 1-1/4" 23 m³/hr
FLV12S15FV PVC PVC Flange 1-1/2" 23 m³/hr
FLV12S20FV PVC PVC Flange 2" 23 m³/hr
FLV12S25FV PVC PVC Flange 2-1/2" 23 m³/hr
FLV12S30FV PVC PVC Flange 3" 23 m³/hr
FLV12S40FV PVC PVC Flange 4" 23 m³/hr
Flow rate stated is a guide only - Please provide application information to our sales team for flow calculations.

Hayward FLV Bag Filter PVC 02 Size

  • Brand: Hayward Flow Control
  • Product Code: Hayward FLV Bag Filter PVC 02 Size
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options


02 Filter Bags to fit this Housing
