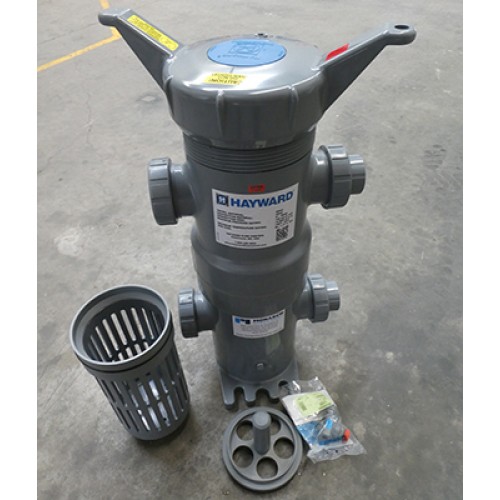

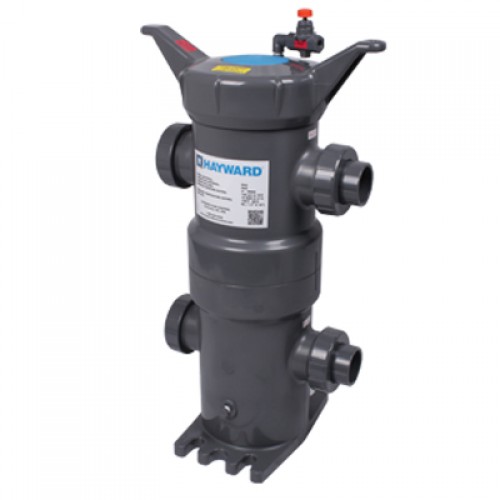

Hayward's industry-leading thermoplastic bag filters are specifically designed to handle the most challenging and corrosive applications out there. The FLV Series in PVC material featuring true-union design in 1-1/4" to 2" sizes, with socket, threaded or flanged ends. Ideal for sodium hypochlorite and bleach processing and handling. FPM seals standard, EPDM optional. Pressure rated for 150psi at 70°F non-shock.

The rugged, thick wall construction of these filters ensures years of trouble free service. The built in true union piping and drain connections makes installation and operation quick and easy.

  • Easier Integration for Existing Systems due to True Union Connectivity

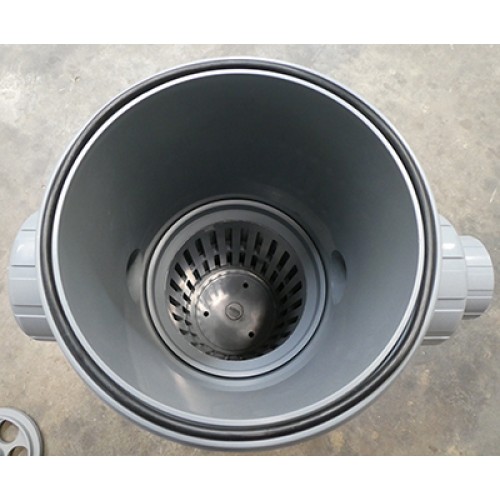

  • Vertical Flow Flutes in Basket, No Bag Snag and More Flow Volume
  • Hand-Removable Ergonomic Cover with Liquid Displacing Dome
  • Vent Valve on Cover
  • In-Line or Loop Configuration
  • Hinged Basket for Easy Bag Removal
  • Drain Port at Bottom
  • Integral Mounting Base
Code Body Connection Type Size Flow
FLV21S12STV CPVC CPVC NPT/Socket 1-1/4" 12 m³/hr
FLV21S15STV CPVC CPVC NPT/Socket 1-1/2" 12 m³/hr
FLV21S20STV CPVC CPVC NPT/Socket 2" 12 m³/hr
FLV21S12FV CPVC CPVC Flange 1-1/4" 12 m³/hr
FLV21S15FV CPVC CPVC Flange 1-1/2" 12 m³/hr
FLV21S20FV CPVC CPVC Flange 2" 12 m³/hr
Flow rate stated is a guide only - Please provide application information to our sales team for flow calculations.

Hayward FLV Bag Filter CPVC 01 Size

  • Brand: Hayward Flow Control
  • Product Code: Hayward FLV Bag Filter CPVC 01 Size
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options


01 Filter Bags to fit this Housing
