  • Multi Bag Filter QMBF-0602-BB10-150-A
mm 3 bags 4 bags 6 bags 8 bags
A 1420 1342 1495 1468
B 400 450 520 600
C 520 527 450 528
D 250 225 300 200
E 500 550 600 750
F 1806 1781 1917 2029
G 475 525 580 735
N1 DN80 DN100 DN150 DN150
N2 DN80 DN100 DN150 DN150
H Ø18 Ø18 Ø18 Ø18
mm 12 bags 17 bags 23 bags
A 1612 1640 1700
B 680 750 820
C 528 450 535
D 220 250 250
E 950 1050 1200
F 2256 2421 2586
G 930 1040 1195
N1 DN200 DN250 DN250
N2 DN200 DN250 DN250
H Ø24 Ø24 Ø24

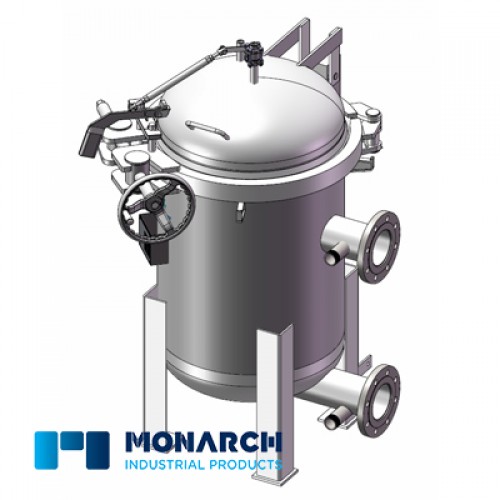

6 x 02 Size Multi Bag Filter Housing with Quick Open Lid in 304

QMBF Quick Open series multi-bag filter housings feature a self-balancing V-clamp locking mechanism, a break-through from conventional designs. Its single-handed, user-friendly operation makes this feature an ideal choice for applications with high flow rates requiring frequent element change-outs. Minimal downtime reduces operating.

Efficiency is highly improved by a fully-interlocked pressure release which ensures safety in all conditions. With its rugged, corrosion-free V-clamp and proprietary screw-drive mechanism, the housing provides users with years of service.

  • 304 Stainless Steel (All wetted parts)
  • 6” ANSI 150# RF Connections
  • Requires 6 x 02 Size Filter Bags (Supplied Separately)
  • Self-balancing V-clamp locking mechanism
  • Buna-N Seal standard
  • 10 bar pressure rating
  • Supplied with 6 x 316L stainless steel bag support basket
  • Flow rate: 240,000 lt per hour (Water) when fitted with standard filter bag
  • Self-balancing V-clamp locking mechanism for fast and easy operation.
  • Single-handed, user-friendly operation, ideal for applications with high flow rates requiring frequent bag change-outs.
  • Minimal downtime reduces operating costs.
  • Fully interlocked design for safety under any conditions.
  • Proprietary screw-drive for years of smooth service.
  • Rugged, corrosion-free V-clamp ensure cost-effective bag filtration.

Options
  • Inlet, Outlet and Lid Hinge position can be changed better suit installation
  • ASME "U" Stamp and Third Party Certification
  • Other seal options are available
  • Pressure Gauges, Vents and Drain Valves
  • Displacement Balloons
  • Magnetic inserts
  • Internal & External Polishing

Multi Bag Filter QMBF-0602-BB10-150-A

  • Brand: Feature-Tec
  • Product Code: Multi Bag Filter QMBF-0602-BB10-150-A
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options


02 Filter Bags to fit this Housing
