Size: 2" ANSI

Material: PVC Cell Class 12454 per ASTM D1784

Disc: PVC or GFPP

Liner & Seals: EPDM, Viton or Nitrile

Operation: Without levers or gear boxes, IS05211 Mounting Pad and Drive Stem making actuation easier and more economical.

Flange Lugs: Standard Moulded

  • One Piece Body and Disc in PVC, CPVC and GFPP Material
  • Revolutionary Hand Lever with 19 Lockable Stop Positions and 360 Interlock
  • External Disc Position and Flow Indication
  • Hydro-dynamic Centric Disc Design for Increased Flow Performance
  • Over-Sized Liner Face Maximizes Surface Contact with Flanges
  • EPDM, Viton or Nitrile Liners
  • 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
  • Stem Bearing and Seal Retainer for Absolute Stem Positioning and Sealing
  • ISO 5211 Top Flange and Stem Drive
  • All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
  • Pressure Rated at 150 PSI / 10 Bar in All Sizes @ 70F Non-Shock

Options

  • Over-Molded or Field Mountable 316 Stainless Steel Lugs
  • Gear Operators
  • Complete Range of Pneumatic or Electric Actuators
  • Stem Extensions
  • 2" Square Operating Nut
Code Body Disc Liner/Seals
BYV11020A0EK000
PVC PVC EPDM
BYV14020A0EK000 PVC GFPP EPDM
BYV11020A0VK000
PVC PVC Viton
BYV14020A0VK000 PVC GFPP Viton
BYV11020A0NK000
PVC PVC Nitrile
BYV14020A0NK000 PVC GFPP Nitrile

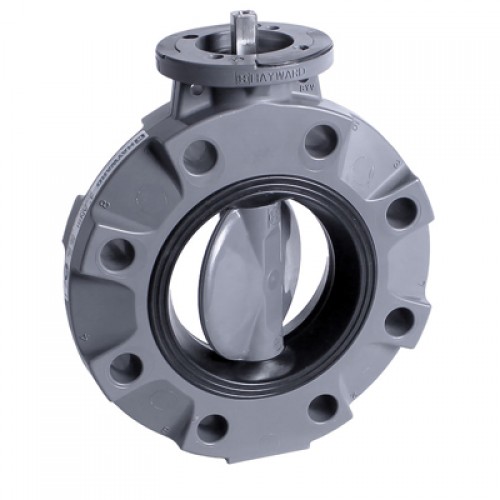

2" BYV Butterfly PVC Valve BYV11020A0-K000

  • Brand: Hayward Flow Control
  • Product Code: 2" BYV Butterfly PVC Valve BYV11020A0-K000
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
