Size: 2" ANSI

Material:GFPP per ASTM D4101 Cell Class 85580

Disc: GFPP

Liner & Seals: EPDM, Viton or Nitrile

Operation: Without levers or gear boxes, IS05211 Mounting Pad and Drive Stem making actuation easier and more economical.

Flange Lugs: 316 Stainless Steel Lugs

  • One Piece Body and Disc in GFPP Material
  • Revolutionary Hand Lever with 19 Lockable Stop Positions and 360 Interlock
  • External Disc Position and Flow Indication
  • Hydro-dynamic Centric Disc Design for Increased Flow Performance
  • Over-Sized Liner Face Maximizes Surface Contact with Flanges
  • EPDM, Viton or Nitrile Liners
  • 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
  • Stem Bearing and Seal Retainer for Absolute Stem Positioning and Sealing
  • ISO 5211 Top Flange and Stem Drive
  • All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
  • Pressure Rated at 150 PSI / 10 Bar in All Sizes @ 70F Non-Shock

Options

  • Over-Molded or Field Mountable 316 Stainless Steel Lugs
  • Gear Operators
  • Complete Range of Pneumatic or Electric Actuators
  • Stem Extensions
  • 2" Square Operating Nut
Code Body Disc Liner/Seals
BYV44020A0EK100
GFPP GFPP EPDM
BYV44020A0VK100
GFPP GFPP Viton
BYV44020A0NK100
GFPP GFPP Nitrile

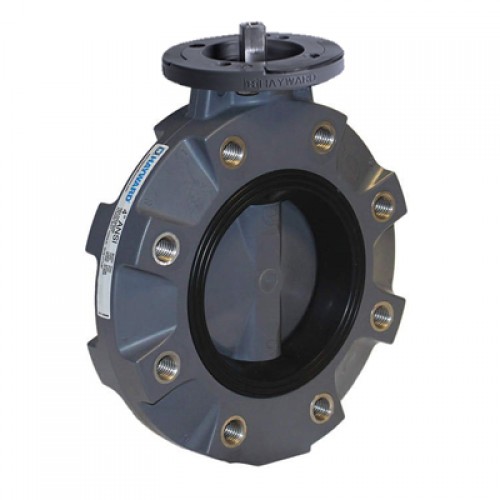

2" BYV Butterfly GFPP Valve BYV44020A0-K100

  • Brand: Hayward Flow Control
  • Product Code: 2" BYV Butterfly GFPP Valve BYV44020A0-K100
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
