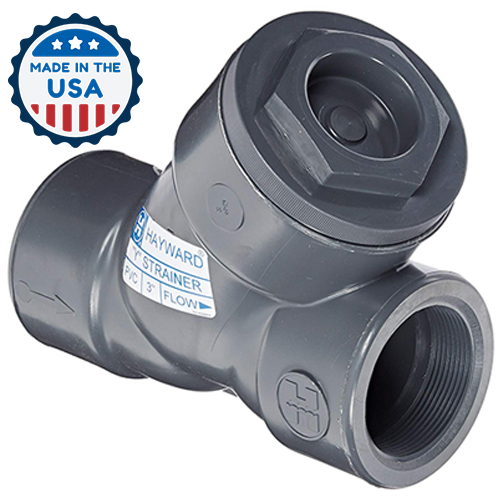

  • YS10125T PVC Y Strainer 1-1/4" NPT

1-1/4" NPT Threaded PVC Y Strainer with Viton (FPM) Seals

  • Code: YS10125T
  • Connection: 1-1/4" NPT Threaded
  • Material: PVC Cell Class 12454 per ASTM D1784
  • Seals: Viton (FPM)
  • One piece injection molded body
  • Standard 1/32" PVC Screen
Size
DN
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
Soc/Thd
kg
FLG
kg
15 86 35 57 38 n/a 14 25 54 64 0.11 n/a
20 106 43 73 51 n/a 21 32 70 76 0.29 n/a
25 132 51 92 55 n/a 25 38 84 84 0.40 n/a
32 168 67 114 75 n/a 32 51 114 113 0.79 n/a
40 168 67 114 75 n/a 40 51 114 113 0.74 n/a
50 194 86 137 95 279 51 60 129 124 1.36 2.27
65 262 119 184 133 n/a 74 89 168 166 3.52 n/a
80 262 119 184 140 365 74 89 168 166 3.40 5.56
100 325 146 226 157 450 96 108 203 218 4.30 7.94
Dimensions are subject to change without notice

YS10125T PVC Y Strainer 1-1/4" NPT

  • Brand: Hayward Flow Control
  • Product Code: YS10125T PVC Y Strainer 1-1/4" NPT
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00
