  • Element cleaning without stopping or disrupting the fluid flow.
  • Element cleaning without significant fluid loss.
  • Fully enclosed system.
  • No operator contact with the fluid, ideal for hazardous or sensitive applications.
  • No externally introduced contamination issues, increases confidence in the quality of the filtered product.
  • Clean operating area and easy environmental contamination control.
  • Suitable for virtually all fluids of all viscosity levels.

Factors to be Taken Account of when Selecting a Strainer:

  • Fluid type
  • Flow rate
  • Viscosity
  • Temperature – operating and design
  • Pressure – operating and design
  • Degree of filtration required
  • Connection type i.e. flanged PN16, ASA150, screwed BSP, NPT
  • Any special requirements i.e. heating jacket, magnets, mounting brackets, dp indicator/switch etc.
  • Paint and coatings industry
    Used as a fully automated quality control measure to ensure paint, ink , varnish etc is free of unwanted particulates in the process and filling lines. Used to replace paint bag filters, open sieves and other more labour intensive filtration methods.
  • Chemical industry
    Used for filtering process chemical liquids on a automated basis to protect pipeline equipment, as a quality control measure and replacing more manual methods of filtration generally.
  • Paper industry
    Frequently used for process water for example in the protection of spray nozzles on paper making machinery and also used on raw water intake and cooling water.
  • Power
    Used on industrial water for cooling and the filtration of sealing water to increase the service life of turbine shaft seals.
  • Water industry
    Used throughout the industry for straining of raw water usually before other finer filtration methods and on waste water treatment plant etc.
  • Food
    Used on suitable applications for example in the chocolate industry as a quality control measure and in the meat industry for process water filtration.
Threaded Units (mm)
Size A B C D E F G H J
40 220 157 260 245 555 150 185 250 3/4"
50 220 157 260 245 555 150 185 250 3/4"
65 220 157 260 245 555 150 185 250 3/4"
Flanged Units (mm)
Size A B C D E J
50 325 157 260 245 555 3/4"
80 360 190 260 255 645 1-1/2"
100 550 280 345 380 880 1-1/2"
150 550 406 345 560 1170 1-1/2"
200 870 700 345 560 1170 1-1/2"
250 1000 800 345 560 1170 1-1/2"
300 1100 865 345 560 1170 1-1/2"

Sizing and Differential Pressure Calculations

Please provide the following and we will advise:

  • Flow rate
  • Liquid
  • Viscosity
  • Removal Size of Screen


Parts and Accessories
Code Description Link
XSK50SCV Service Kit - Viton (DN40,50,65) More Information
XSK50SCE Service Kit - EPDM (DN40,50,65) More Information
20020 Element Bearing
20014 Scraping Blade Set More Information
2000 Element
More Information
BKT-AS-AC-01 Ratchet Handle & Clip More Information

XCLPS Threaded - (50 Bar)

Oxford XCLPS-HP blade style self clean filters for pressures up to 50 bar are used for the filtration of virtually all fluids from water to very high viscosity fluids where the filter is cleaned without the operator accessing the unit or even on a completely automatic basis with no operator involvement in the cleaning operation.

Oxford Filtration's innovative self-clean filter technology offers you improved output, greater efficiency and consistent quality in a cost-effective and reliable package.

Material:
316 Stainless Steel
Connections:
BSP or NPT
Threaded Sizes:
DN40, DN50, DN65
Pressure:
50 Barg (725 psi) @ 50°C
Element Sizes:
From 50 micron
Closure:
Quick Release V Clamp
Head Seal:
Viton

Optional Auto Package - Mode of Operation

As the filter collects debris, the pressure drop across the filter increases. This increase will operate the Differential Pressure (DP) switch (which is factory set at 0.35bar / 5 lb/in²). The operation of this switch causes the cleaning motor to run for a fixed time, thus removing the debris from the element. After a number of motor operations, the discharge valve will open (and then close) to discharge the debris from the filter.

The user also has the option to have the cleaning motor and/or discharge valve operate at fixed time intervals.

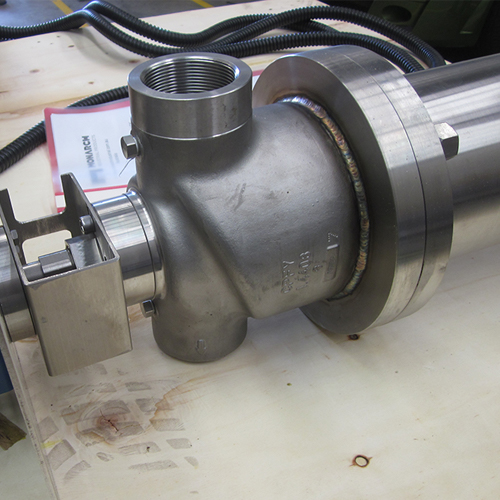

XCLPS-HP Self Clean Filter - Threaded

  • Brand: Oxford
  • Product Code: XCLPS-HP Self Clean Filter - Threaded
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
