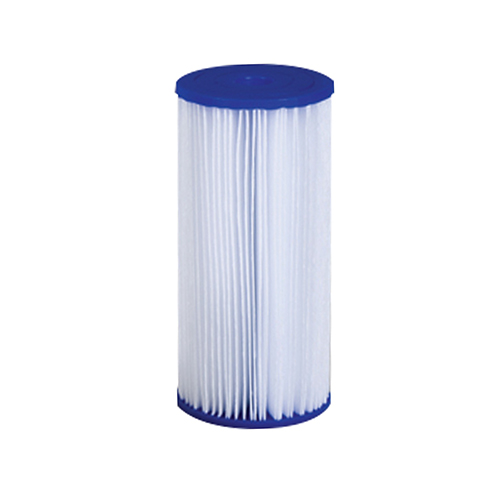

The Pleated Filter Cartridge is designed to supply a high flow rate with minimal pressure loss while maintaining a high quality of filtration. This is achieved by using a high quality, reusable, polyester, pleated fabric over a polypropylene support core.

The Pleated Filter Cartridge design has been designed for exceptional sediment loading capacity with the ability to be rinsed and reused in most applications thus extending the usable life of the cartridge. They are well suited for sediment removal in low pressure applications and in general Domestic, Rural, Commercial and light Industrial uses.

Micron rating (Nominal): 1, 5, 10, 20

Material: Polyester

Length: 250mm (9-7/8")

Outside Diameter: 114mm (4-1/2")

Inside Diameter: 28mm (1-1/8")

Temperature: 4.4°C to 52°C

Recommended Max Differential Pressure: 69 kPa (10 psi)


Please note: Minimum order or Minimum Quantity May Apply to this product

10" Pleated Polyester 4-1/2" Dia

  • Brand: Monarch
  • Product Code: 10" Pleated Polyester 4-1/2" Dia
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
