  • WHSSCF Multi Cartridge Filter

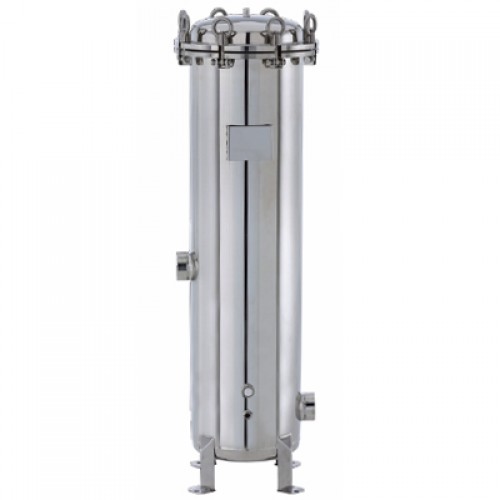

Stainless Steel Multi Cartridge Filter Housing, Swing Bolt Closure

The Stainless Steel Multi Cartridge (Cluster) Filter Housings can be used for a wide variety of applications. Simple to install, easy to maintain, and having no water wastage makes these housings an excellent choice for large scale, heavy duty filtration requirements. The Cluster Housings hold 7 cartridges each and come in 3 sizes.

The housings are available in 304 and 316 Stainless Steel. They are designed to accept 64mm (2-1/2") O.D. standard Double Open End (DOE) cartridges making them compatible with a wide range of cartridges adding to their versatility. The housing includes a top vent/pressure gauge port (P1) on the cap and raw liquid and filtered liquid drains located on either side of the sump (P1 & D1).

  • 7 x 20" Cartridges DOE
  • 7 x 30" Cartridges DOE
  • 7 x 40" Cartridges DOE

Inlet/Outlet

  • 2" BSP
Pressure

  • 150 psi or 10.34 bar
Code Material A B C D N1/N2 P1 D1 Flow
    mm mm mm mm BSPF BSP BSP lpm
WH304SSCFN20-7 304 875 400 130 250 2" 1/4" 1/2" 210
WH304SSCFN30-7 304 1107 500 130 250 2" 1/4" 1/2" 315
WH304SSCFN40-7 304 1357 600 130 250 2" 1/4" 1/2" 420

WH316SSCFN20-7 316 875 400 130 250 2" 1/4" 1/2" 210
WH316SSCFN30-7 316 1107 500 130 250 2" 1/4" 1/2" 315
WH316SSCFN40-7 316 1357 600 130 250 2" 1/4" 1/2" 420
Flow rate stated is a guide only - Please provide application information to our sales team for flow calculations.

WHSSCF Multi Cartridge Filter

  • Brand: Monarch
  • Product Code: WHSSCF Multi Cartridge Filter
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
