Size
DN
A
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
50 226 114 1215 991 193 794 532
80 247 114 1215 991 213 794 532
100 258 114 1215 991 213 794 532
Dimensions are subject to change without notice

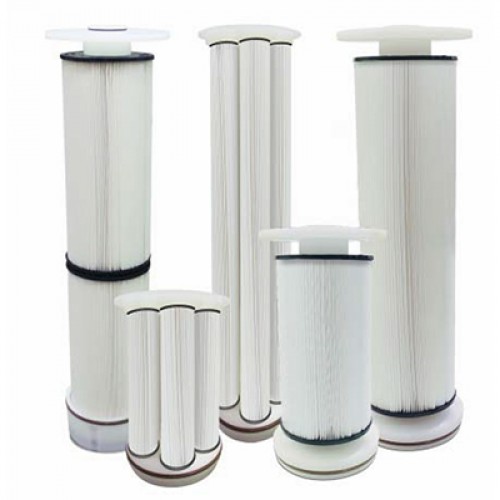

MFLVKIT230

Cartridge Adapter, For Double Length Series Cartridge Filter
Cartridge 2-1/2"- 2-3/4" Ø x 30" Long, ID minimum of 1" (DOE or 222 CAP)
Suitable for Hayward Cartridges and other Manufacturers
Adapters are designed to work with DOE and 222 End Connectors.
When using non-Hayward manufactured cartridges, it is suggested to check cartridge dimensions and/or consult factory for proper fit.

When using 222 FIN cartridges, please contact sales for options before ordering adapters.

CFLVKIT430

Cartridge Adapter, For Double Length Series Cartridge Filter
Cartridge 4-1/2" Ø x 30" Long, ID minimum of 1" (DOE or 222 CAP)
Suitable for Hayward Cartridges and other Manufacturers
Adapters are designed to work with DOE and 222 End Connectors.
When using non-Hayward manufactured cartridges, it is suggested to check cartridge dimensions and/or consult factory for proper fit.

When using 222 FIN cartridges, please contact sales for options before ordering adapters.

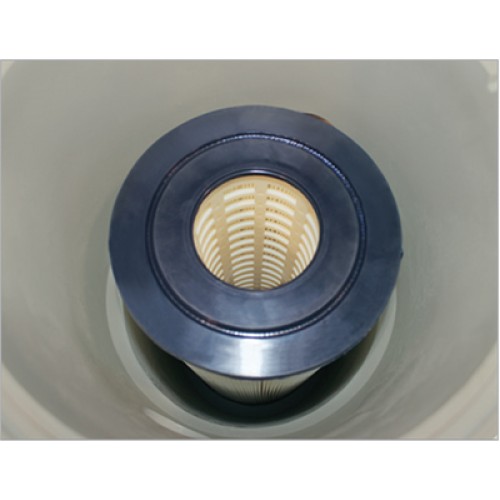

CFLVKIT830

Cartridge Adapter, For Double Length Series Cartridge Filter.
Cartridge 7-3/4" Ø x 30" Long, ID minimum of 2-5/8" (DOE)
Suitable for Hayward Cartridges and other Manufacturers.
When using non-Hayward manufactured cartridges, it is suggested to check cartridge dimensions and/or consult factory for proper fit.


CFLVKIT730

Cartridge Adapter, For Double Length Series Cartridge Filter.
Cartridge 7" Ø x 30" Long, (DOE)
Suitable for Hayward Cartridges


CFLVKIT732

Cartridge Adapter, For Double Length Series Cartridge Filter.
Cartridge 7" Ø x 16" Long, Stacked (DOE)
Suitable for Hayward Cartridges

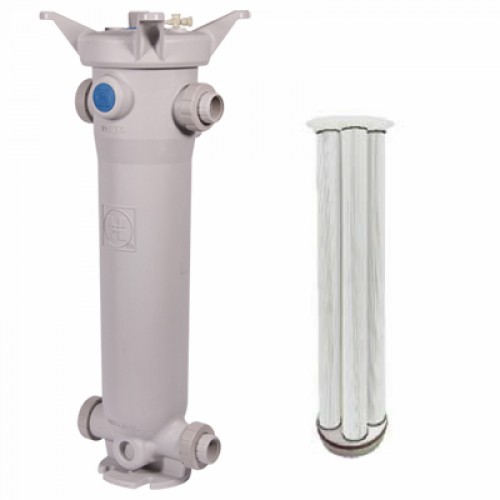

The CFLV Series in Platinum GFPP for Single or Multiple (5) cartridges, features one piece injection moulded Platinum GFPP, incorporating flexible true-union end design. Supplied with FPM (Viton) Seals

The rugged, thick wall construction of these filters ensures years of trouble free service. The built in true union piping and drain connections makes installation and operation quick and easy.

  • Requires Cartridge Adapter Kit -  Single 7-3/4" or Multiple (5) 2-1/2" Cartridge kits available
  • Easier Integration for Existing Systems due to True Union Connectivity
  • Platinum GFPP Material
  • Hand-Removable Ergonomic Cover with Liquid Displacing Dome
  • 1-Piece Injection Molded Construction
  • Vent Valve on Cover
  • In-Line or Loop Configuration
  • Drain Port at Bottom (Optional 2" port available)
  • Integral Mounting Base
  • Supplied with FPM (Viton) Seals
Code Body Connection Type Size Flow
CFLV4P2S20T4V GFPP GFPP NPT 2" Cartridge Dependent
CFLV4P2S20F4V GFPP GFPP Flange 2" Cartridge Dependent
CFLV4P2S30T4V GFPP GFPP
NPT 3" Cartridge Dependent
CFLV4P2S40T4V GFPP GFPP NPT 4" Cartridge Dependent

CFLV4P2S20S2V GFPP CPVC
Socket 2" Cartridge Dependent
CFLV4P2S30S2V GFPP CPVC Socket 3" Cartridge Dependent
CFLV4P2S40S2V GFPP CPVC Socket 4" Cartridge Dependent

CFLV4P2S20S1V GFPP PVC Socket 2" Cartridge Dependent
CFLV4P2S30S1V GFPP PVC Socket 3" Cartridge Dependent
CFLV4P2S40S1V GFPP PVC Socket 4" Cartridge Dependent

CFLV4P2S20S1V-TABLE GFPP PVC Table Flange 2" Cartridge Dependent
CFLV4P2S30S1V-TABLE GFPP PVC Table Flange 3" Cartridge Dependent
CFLV4P2S40S1V-TABLE GFPP PVC Table Flange 4" Cartridge Dependent

CFLV4P2S20S3V GFPP PP Socket Fusion 2" Cartridge Dependent
CFLV4P2S5MS3V GFPP PP Socket Fusion DN50 Cartridge Dependent
CFLV4P2S30S3V GFPP PP Socket Fusion 3" Cartridge Dependent
CFLV4P2S8MS3V GFPP PP Socket Fusion DN80 Cartridge Dependent
CFLV4P2S40S3V GFPP PP Socket Fusion 4" Cartridge Dependent
CFLV4P2S1MS3V GFPP PP Socket Fusion DN100 Cartridge Dependent

Hayward CFLV Filter GFPP Double

  • Brand: Hayward Flow Control
  • Product Code: Hayward CFLV Filter GFPP Double
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
