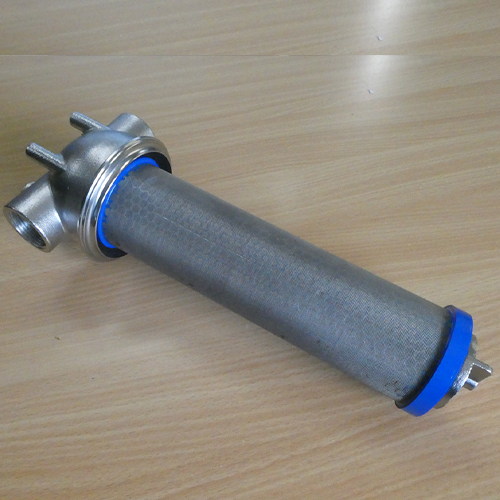

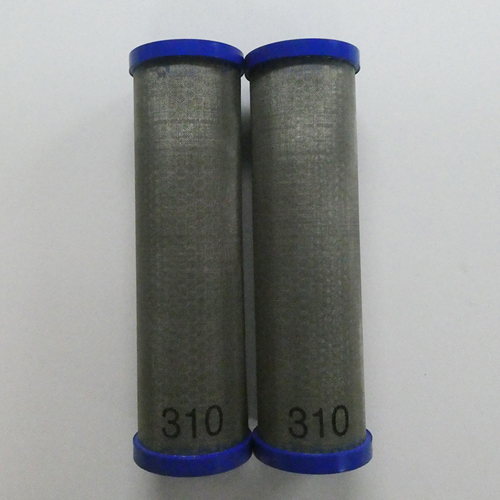

All stainless Steel Cartridge inserts with polyethylene moulded ends, with seal.

Made in Australia by Monarch

Micron Code Description
80 CART-A-0080 Woven Wire Mesh with Perforated Support Layer
100 CART-A-0100 Woven Wire Mesh with Perforated Support Layer
130 CART-A-0130 Woven Wire Mesh with Perforated Support Layer
150 CART-A-0150 Woven Wire Mesh with Perforated Support Layer
190 CART-A-0190 Woven Wire Mesh with Perforated Support Layer
260 CART-A-0260 Woven Wire Mesh with Perforated Support Layer
310 CART-A-0310 Woven Wire Mesh with Perforated Support Layer
415 CART-A-0415 Woven Wire Mesh with Perforated Support Layer
530 CART-A-0530 Woven Wire Mesh with Perforated Support Layer
600 CART-A-0600 Woven Wire Mesh with Perforated Support Layer
800 CART-A-0800 Perforated Layer only
810 CART-A-0810 Woven Wire Mesh with Perforated Support Layer
900 CART-A-0900 Woven Wire Mesh with Perforated Support Layer
1000 CART-A-1000 Woven Wire Mesh with Perforated Support Layer
1100 CART-A-1100 Perforated Layer only
1500 CART-A-1500 Perforated Layer only
2000 CART-A-2000 Perforated Layer only
3000 CART-A-3000 Perforated Layer only
4000 CART-A-4000 Perforated Layer only
5000 CART-A-5000 Perforated Layer only


Other micron sizes and construction types available on request.

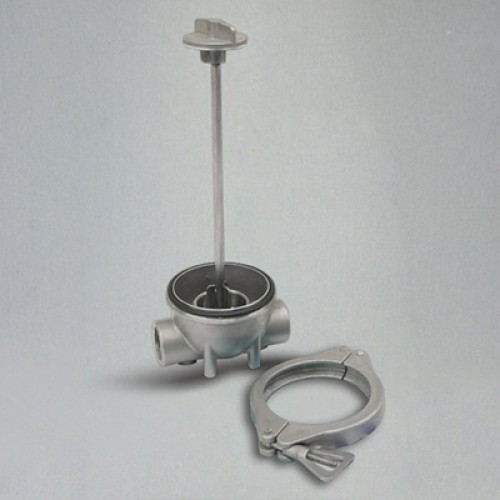

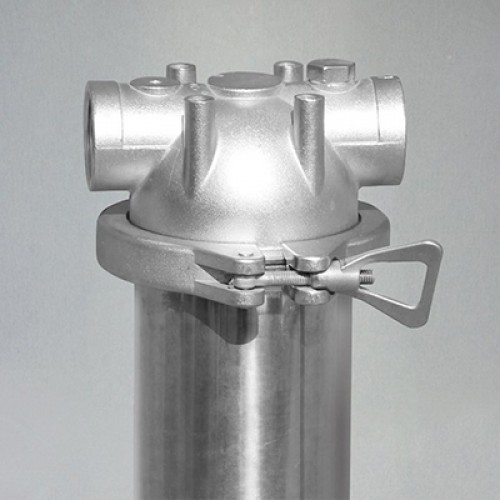

1" BSP ELF-S Series 10" Filter Housing is specially designed for low flow rates. With a single die-casted top piece design, the ELF-S in-line filter can be easily connected to the pipeline directly. The filter element can be replaced by only removing the bottom housing, featuring simple maintenance with no leakage. A drain valve is located at the bottom for liquid discharge.

  • Operating pressure to 20 bar permits use in wide range of applications
  • In-line inlet and outlet connections for easy installation
  • Quick-opening design with rugged cast clamp for fast filter change-outs
  • Stainless steel for durable and corrosion resistance

Maximum Pressure

  • 20 bar

Inlet/Outlet

  • 1" BSP
Vent & Drain

  • 1/4" BSP
Model Cartridge Connection L1 L2 Weight
ELSC-10 10" 1" BSP 122 mm 380 mm 4.75 kgs
ELSC-20 20" 1" BSP 122 mm 634 mm 6.0 kgs

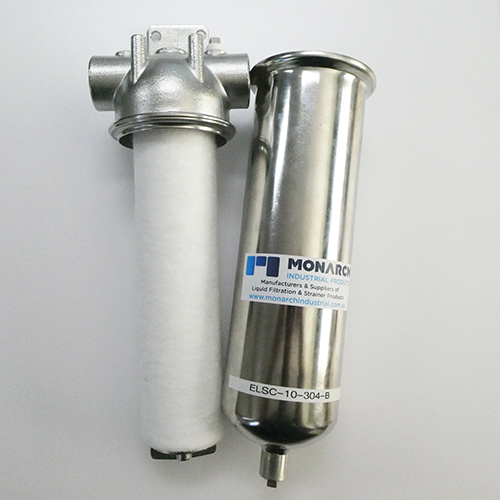

ELSC-10 Cartridge Filter-Strainer

  • Brand: Feature-Tec
  • Product Code: ELSC-10 Cartridge Filter
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
