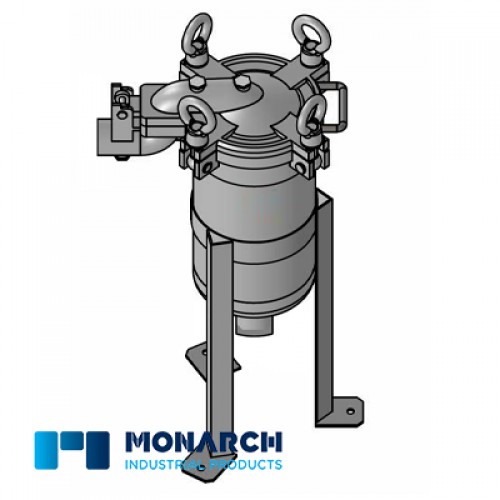

Top Entry Bag Filter Housing 01 Size in 304 for the Filtration of Liquids.

Top inlet single bag filter housings use an extended goose neck inlet. This shape helps to reduce pressure loss at the inlet. Fluid enters directly to the centre of the bag, minimising turbulence during the filtration process. The filter housing opens and closes quickly and easily, adapting to different opening directions and allows a quick bag change-out. The cover directly compresses the filter bag seal-ring, eliminating the possibility of bypass.

Feature-Tec ECT Series Bag Filter Housing 01 Size (BSP)
  • 304 Stainless Steel (All wetted parts)
  • 2” BSP Female Connections
  • Requires 01 Size Filter Bags (Supplied Separately)
  • Buna-N Seal standard
  • 10 bar pressure rating
  • Supplied with 316L stainless steel bag support basket
  • Zinc plated Swing Bolts
  • Flow rate: 20,000 lt per hour (Water) when fitted with standard filter bag
  • Stainless Steel Support Legs Included
  • Alt Code: ILBE-0101-B-10050B-ECT
Options
  • 304 Stainless Steel Swing Bolts
  • Other seal options are available
  • Pressure Gauges, Vents and Drain Valves
  • Displacement Balloons
  • Magnetic inserts
  • Internal & External Polishing

Bag Filter Housing (01 Size) ECT-0101-BB-10-050BSP

  • Brand: Feature-Tec
  • Product Code: Bag Filter Housing (01 Size) ECT-0101-BB-10-050BSP
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options


01 Filter Bags to fit this Housing
