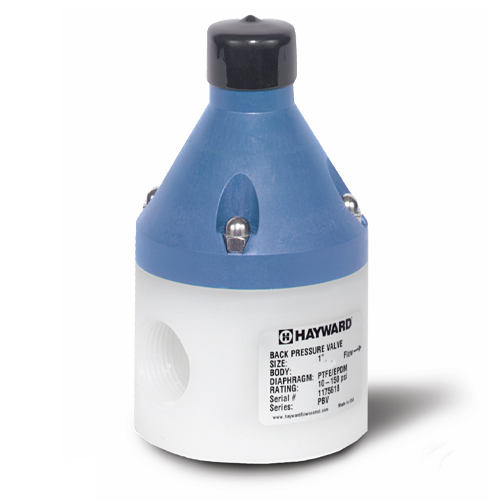

  • PBV3037TPE1 Back Pressure Valve

3/8" Threaded PP PBV Series Diaphragm Back Pressure Valve

Designed to enhance the performance of chemical feed systems by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-siphon valve. Spare Parts and rebuild kits available.

  • Material: PP per ASTM D4101
  • FNPT Threads (Standard)
  • PTFE/EPDM Diaphragm (Standard)
  • Spring: 10 – 150 psi (Spring pre-set: 50 psi)
  • 304 Stainless Steel Bolting
  • Anti-Siphon Function
  • Adjustment Screw with Slot
  • PVC, CPVC and PVDF rated to 250 psi @70°F / 17.2 Bar at 21°C
  • PP rated to 150 psi @ 70°F / 10 Bar at 21°C

Options (Please include any options in Comments)

  • ANSI Flanges
  • DIN Flanges
  • EN Threaded
  • Socket
  • True Union Socket
  • True Union Flanged
  • 0 - 50 psi and 10 - 250 psi Springs
  • PTFE/FPM Diaphragm

PBV3037TPE1 Back Pressure Valve

  • Brand: Hayward Flow Control
  • Product Code: PBV3037TPE1 Back Pressure Valve
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
