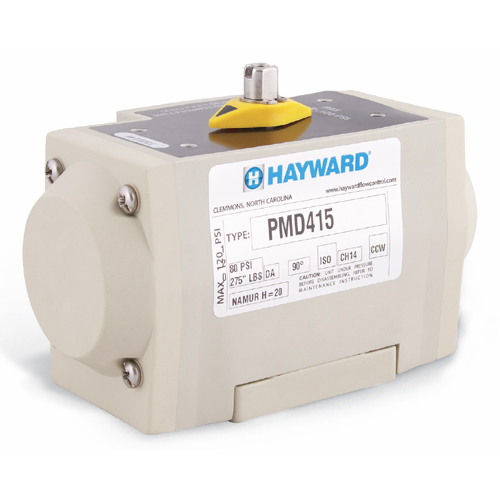

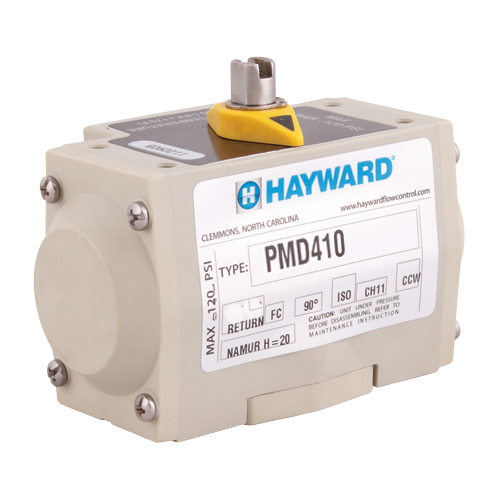

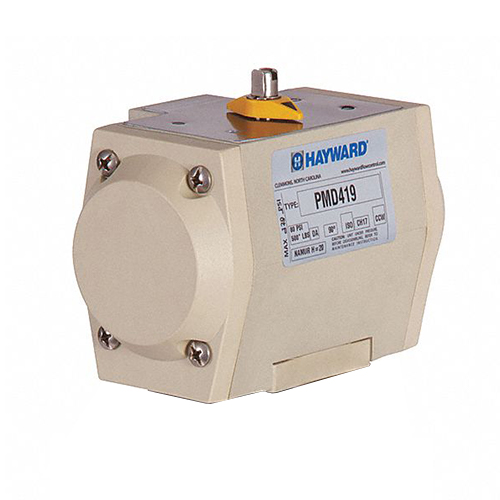

PMD4 Series Double Acting Pneumatic Actuator

Hayward PMD4 pneumatic actuator offers an air-to-air 2-piston rack & pinion design with manual override, position indicator, Namur-style mounting and cycle speed controls on all.

Key Features

• Housing: GFPP per ASTM D4101 Cell Class 85580
• Minimum air pressure: 80 PSI
• Maximum air pressure: 120 PSI
• Cycle time: 0.5 second (Typical)
• Air connections: 1/4" NPT
• Double Acting Air-to-Open and Close
• Corrosion-Resistant GFPP Housing
• Ideal for Corrosive Atmosphere and Environments
• Anodized Aluminum Two-Piston Rack and 303 Stainless Steel Pinion
• Manual Override
• Position Indicator
• Permanent Lubrication
• Lightweight – Easy for Installation
• Namur-Style Solenoid Mounting
• ISO 5211 Mounting Base
• Stainless Steel Fasteners
• Alternative Operating Media for 40 PSI to 120 PSI
• All Units are Marked for Traceability
• 100% Factory Tested

Options

• Solenoid valves with optional voltages
• Auxiliary limit switch
• Cycle speed controls
• Positioners
