  • PCS Pneumatic Actuator

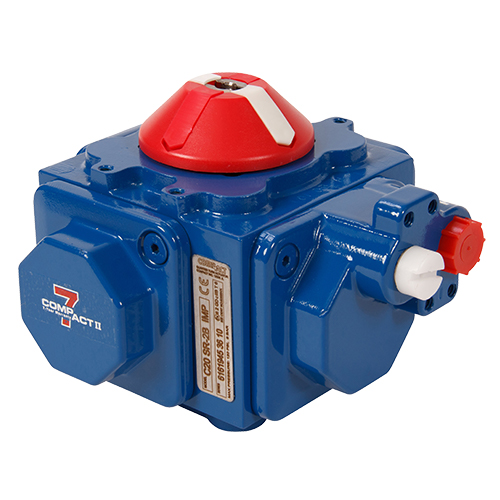

PCS Series Spring Return Pneumatic Actuators

Hayward PCS pneumatic actuator offers an air-to-spring 4-piston rack & pinion design with manual override, position indicator, adjustable travel stops and ISO 5211 mounting base.

Key Features

  • Housing: Epoxy-Coated Aluminum
  • Minimum air pressure: 80 PSI
  • Maximum air pressure: 120 PSI
  • Cycle time: 0.5 second (Typical)
  • Air connections: 1/4" NPT
  • Spring Return Fail-Safe Operation
  • For All Sizes of Ball and Butterfly Valves
  • Four-Piston Rack and Pinion Design
  • Manual Override
  • Compact, Lightweight
  • Position Indicator
  • Namur-Style Solenoid Mounting (Inlet/Outlet)
  • Adjustable Travel Stops
  • ISO 5211 Mounting Base

Options

  • Solenoid valves with optional voltages
  • Auxiliary limit switch
  • Cycle speed controls
  • Positioners

PCS Pneumatic Actuator

  • Brand: Hayward Flow Control
  • Product Code: PCS Pneumatic Actuator
  • Availability: Price & Delivery on Quote
  • $0.00

  • Ex Tax: $0.00

Available Options
